FSW9K
Mechanical Flange Spreading Wedge

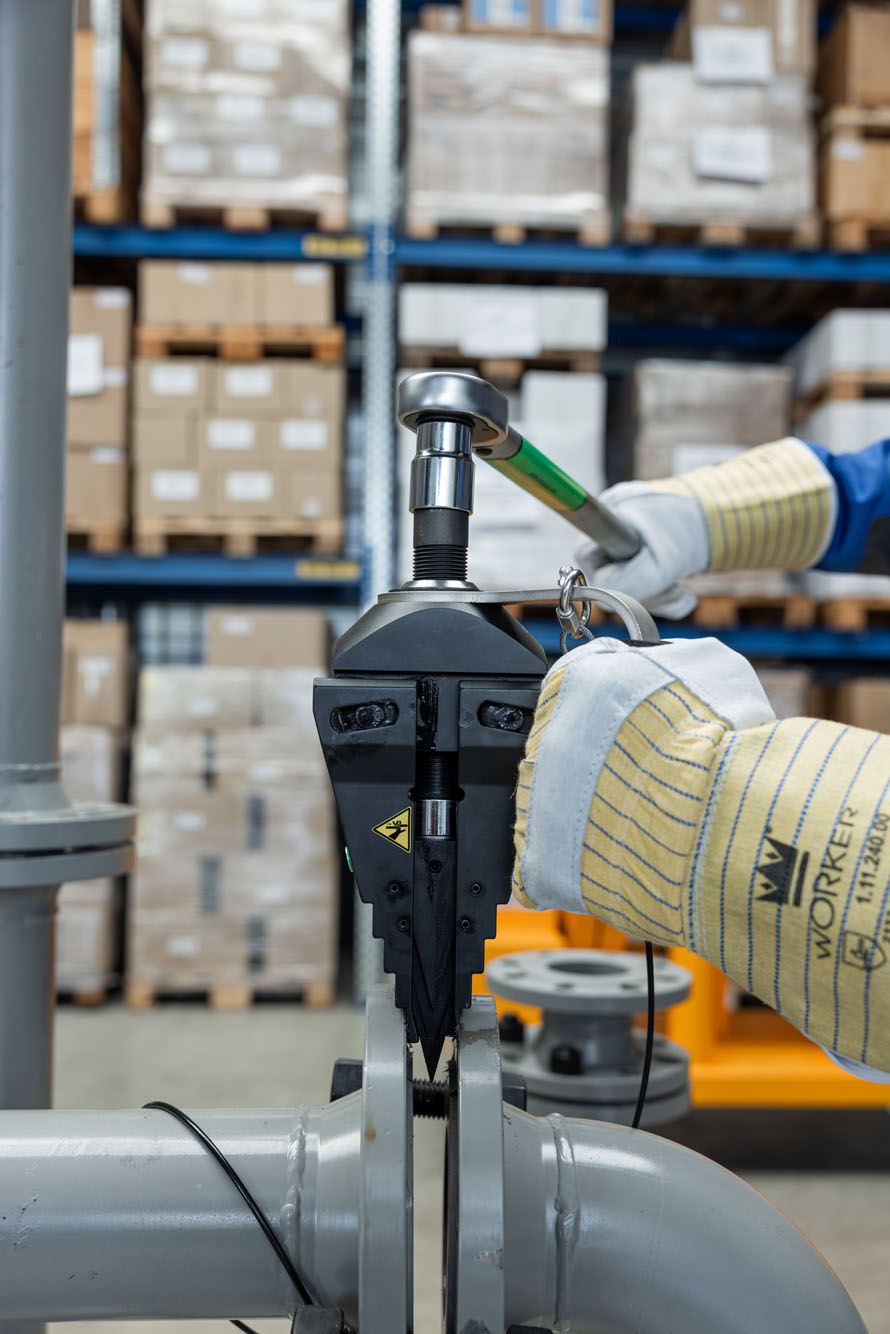

A mechanical flange spreading wedge actuated by applying torque.
The FSW9 flange spreading wedge can enter a flange joint access gap as small as 6mm (0.24”) and produce a maximum spreading force of 188kN (18.8T) when used in pairs (as recommended) to push the mating faces of flanges apart.
The FSW9 can create a gap up to 81mm (3.19”) between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal rings, or other flange face maintenance and testing.
- 100% Load/Pressure Tested and Certified
- High Durability, High Quality, Low Maintenance
- Tool Weight: 5.5Kg (12.1lbs)
- Max Spreading Force: 94kN (9.4T)
- Spreading Distance: 6mm (0.24”) to 81mm (3.19”)
- Robust Moulded Case
| Max Spreading Force: | Kit Content: |
| 94kN (9.4T) | 1 x FSW9 Tool |
| 1 x Safety Block | |
| Max Applied Torque: | 2 x Stepped Blocks with Securing Screws and Allen Key |
| 200Nm (150ft.lb) | 1 x 200Nm (150ft.lb) Torque Wrench |
| 1 x 22mm (1/2") Drive Socket | |
| Kit Weight: | 1 x Instruction Manual |
| 12Kg (26.5lbs) | 1 x Robust Moulded Carry Case with Foam Insert |
| 1 x Safety Lanyard | |
| Kit Dimensions: | |
| 580mm x 340mm x 180mm | |
| (22.8" x 13.4" x 7.1") | |
| Tool Weight: | |
| 5.5Kg | |
| Tool Dimensions: | |
| 80mm x 160mm x 290mm | |
| (3.1" x 6.3" x 11.4") |
